Metal Riding Arena
WHAT IS A METAL RIDING ARENA ?

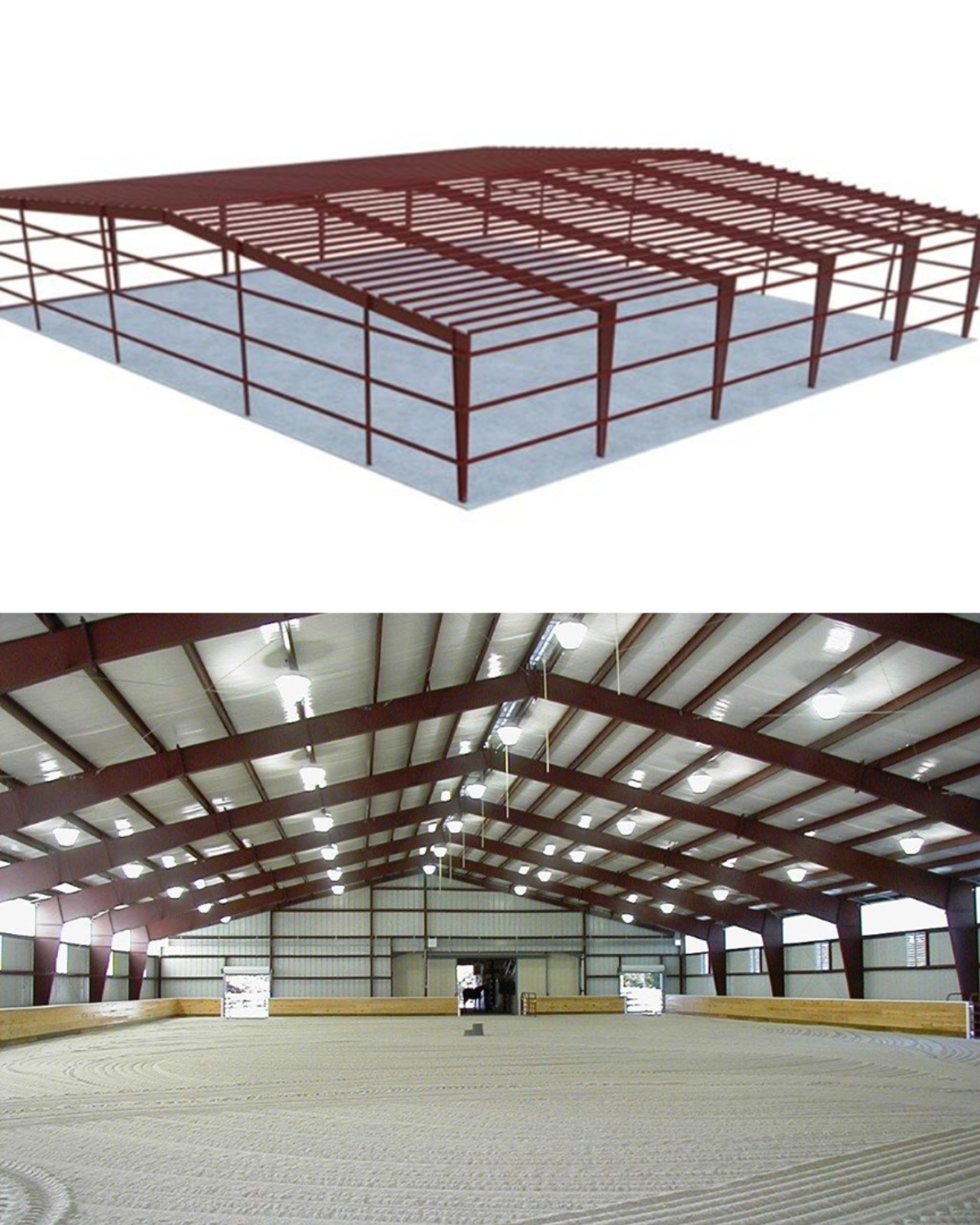

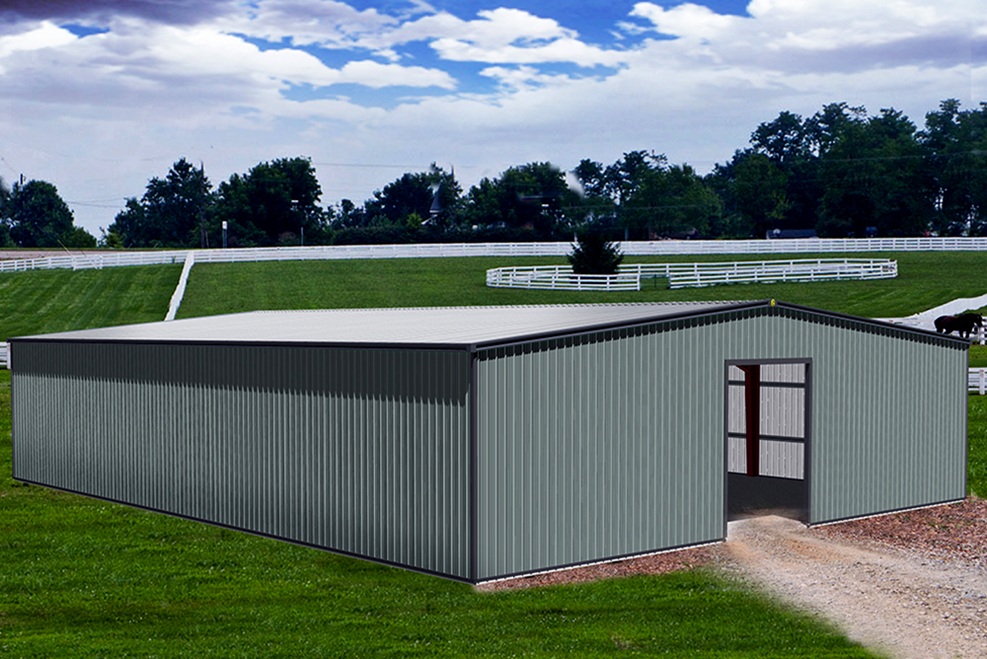

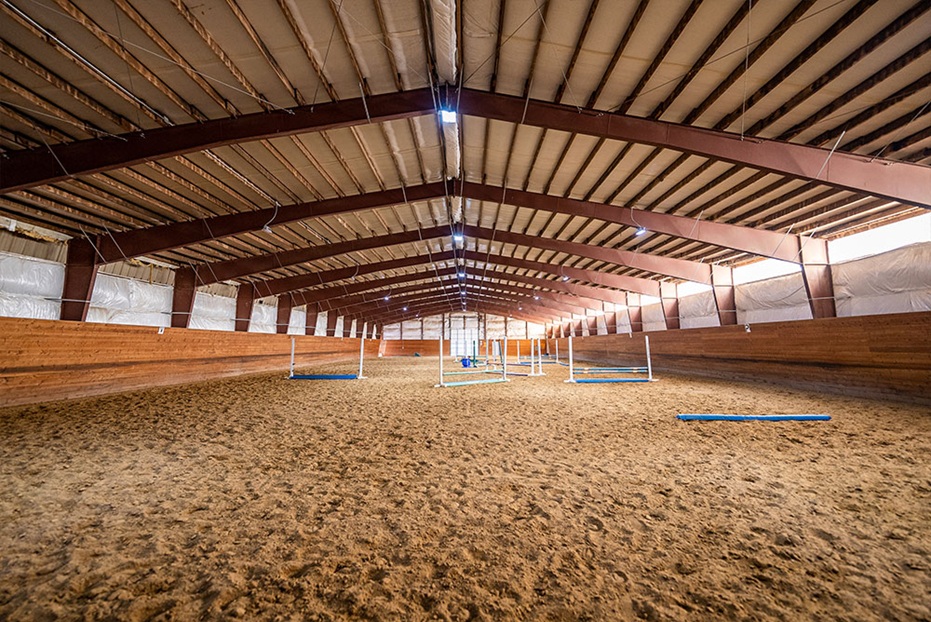

A metal riding arena (also called a steel riding arena) is a pre‑engineered, steel‑framed structure purpose‑built for equestrian training, riding, and competitions. Its core feature is clear‑span design—no interior columns—creating a wide, unobstructed space for horses and riders. It can be either an indoor enclosed riding space or a sturdy outdoor arena.
METAL RIDING ARENA KEY FEATURE
•Durability & safety
Stands up to harsh weather, horse friction and daily wear, with a 40+ year lifespan. Steel is fire-resistant for enhanced safety.
• Environmental benefits
Fully recyclable with minimal construction waste. Long service life lowers carbon output and saves extra land use.
• Customizable design
Complies with local building codes and climate demands. Extra spaces like tack rooms can be added freely
• Common uses
Ideal for equestrian training, practice and competitions. Compact versions suit show jumping specifically.
ADVANTAGES OF METAL RIDING ARENA vs WOODEN ONE
• Superior Durability & Weather Resistance
Steel structures resist rot, mold, termites, insect infestation and wood decay. They hold up well against rain, snow, strong winds and extreme temperatures, with a service life of 40+ years, far longer than wooden buildings.
• Large Clear-Span Space
Engineered steel frames achieve wider column-free spans. It creates fully unobstructed areas for horse riding, jumping and equestrian events, while wooden structures need extra interior support posts that limit movement.
• Lower Maintenance Costs
Metal panels and frames require no regular painting, staining or anti-insect treatment. Only simple routine inspections are needed, cutting long-term upkeep time and expenses greatly.
• Better Fire Safety
Steel is non-combustible. Unlike flammable wood, metal arenas greatly reduce fire risks, a critical benefit for equestrian facilities with hay, bedding and livestock.
• Faster Construction
Most metal riding arenas are prefabricated components. On-site assembly is quick, shortening project lead time and letting you put the facility into use much earlier.
• Structural Stability
Steel has consistent structural strength. It is less likely to warp, sag or deform over years, and performs better under heavy snow loads and seismic activity.
• Eco-Friendly & Flexible
Steel is highly recyclable. The modular design also allows easy future expansion, renovation or relocation, which is difficult for fixed wooden buildings.
APPLICATION SENARIOS OF METAL RIDING ARENA
- Private & Family Use
Personal horse training, daily riding and leisure activities
Small family equestrian yards & private stables
- Professional Equestrian Training Centers
Regular horse schooling, rider skill training
Long-term training for amateur and professional riders
- Equestrian Competitions & Events
FEI dressage, show jumping, reining and barrel racing contests
Local, regional and national horse shows & tournaments
- Commercial Equestrian Clubs & Resorts
Member riding activities, club gatherings and equestrian social events
High-end equestrian resorts for tourism and recreational services
5. Equestrian Schools & Academies Riding courses for students of all ages
Professional equestrian vocational training and certification programs
6. Equine Rehabilitation & Veterinary Facilities Recovery exercise for injured or sick horses
Controlled movement training under professional supervision
7. Breeding Farms & Stud Farms Daily exercise and conditioning for breeding stallions, mares and young horses
8. Public & Community Facilities
Municipal public equestrian parks Community recreational riding spaces for locals
9. Temporary & Mobile Events
Outdoor touring equestrian shows Short-term festival activities (portable metal arena options available)
METAL RIDING ARENA TECHNICAL DATA
1. STANDARD DIMENSIONS
| Usage | Size (L × W) | Eave Height |
| Private Leisure | 18m × 36m | 4.3m Min. |
| Basic Dressage | 20m × 40m | 4.9m Standard |
| FEI Competition Dressage | 20m × 60m | 4.9m+ |
| Show Jumping / Western Events | 30m × 60m+ | 5.5m – 6.1m |
| Clear Span: 12m ~ 61m (no interior support columns) | ||
2. MAIN FRAME SYSTEM
Frame Type: Pre-engineered rigid steel frame Surface Treatment: Hot-dip galvanized / Galvalume steel Secondary Framing: Galvanized C/Z purlins & girts Connection: Fully bolted (no on-site welding) Design Loads Wind Load: 160 ~ 193 km/h (ASCE 7 standard) Snow Load: 1.0 ~ 2.4 kN/m² Seismic: Compliant with Zone 2–4 building codes
3. ROOF SYSTEM
Roof Pitch: 1:12 ~ 4:12 (2:12 recommended) Panel Gauge: 24 ~ 26 gauge steel Service Life: 30+ years Insulation R-value: R16 ~ R30 (insulated metal panels) Natural Light: Translucent polycarbonate panels (10–20% roof area) Ventilation: Continuous ridge vent + eave intake, 4–6 air exchanges/hour
4. WALL SYSTEM
Wall Panels: Galvalume / painted steel (24–26 gauge) Insulation R-value: R13 ~ R21 (optional insulated panels) Horse Kick Board: 1.2m ~ 1.5m height, steel/PVC (smooth & safe) Ventilation: Motorized curtains / louvered side vents
5. FOUNDATION
Perimeter Footing: 300~450mm width × 300~600mm depth concrete Alternative: Steel pier foundation system Optional Floor Slab: 100~150mm reinforced concrete
6. RIDING FOOTING
Thickness: 100 ~ 150mm Material: Sand-fiber mix, silica sand, rubber crumb blend (FEI compliant) Service Life: 5–8 years with regular maintenance
7. DOORS & ACCESS
Main Arena Door: 3.6~4.8m W × 4.3~5.5m H (sliding / bi-fold) Personnel Door: 0.9~1.2m W × 2.1m H (standard)
METAL RIDING ARENA FOR SALE
Our prefabricated portal frame metal riding arenas are built for equestrian training, competitions and farm use. Featuring wide clear-span space without inner columns, these steel structures resist wind, snow, rot and pests, requiring minimal long-term maintenance.
All units are fully customizable in size, ventilation, lighting and wall panels. Factory pre-processing shortens on-site erection greatly, cutting overall construction costs. Engineered to meet international building codes, our durable metal arenas support year-round safe riding for stables, training schools and private horse farms worldwide.
