Bathroom Containers

Bathroom Containers

To complement large-scale dining facilities, modular bathroom and shower containers provide essential hygiene infrastructure. These units are designed for heavy-duty use in mining camps, construction sites, and emergency hospital expansions, focusing on durability, water efficiency, and rapid sanitation.

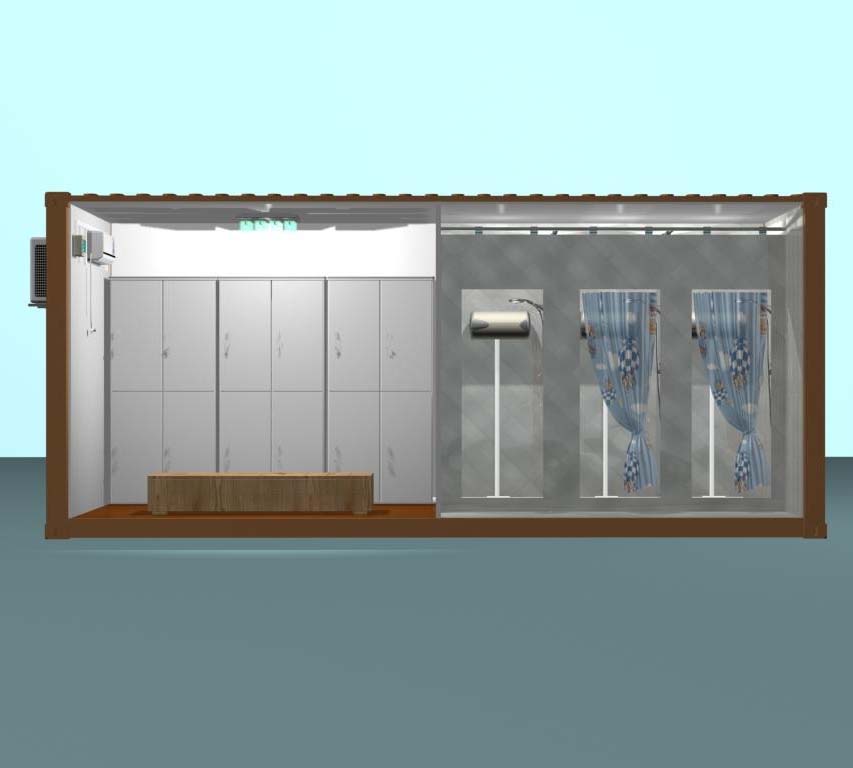

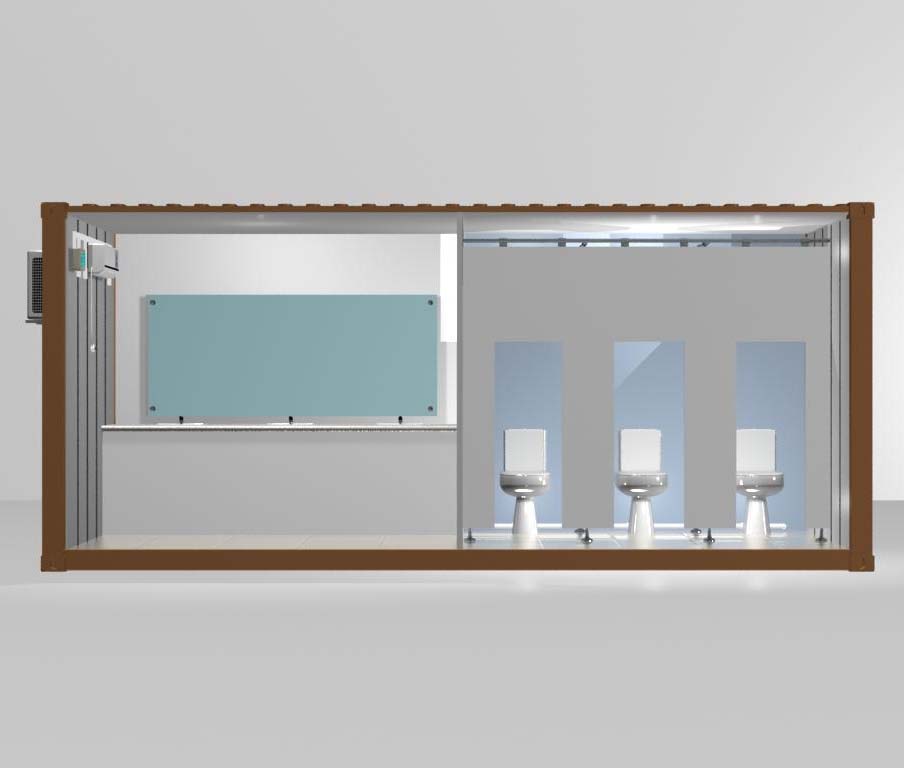

WHAT IS MODULAR BATHROOM & SHOWER CONTAINER?

Modular bathroom & shower container is also called ablution unit or shower block, a complete self-contained bathroom unit, which is preassembled off-site complete with finishes, sanitary wares, concealed pipes, conduits, ceiling and bathroom cabinets, before it is delivered and installed on-site. We supply portable toilets and shower units that comply with international standards. These units are factory-built using certified quality materials, pre-fitted with toilets, sinks, and shower heads, then delivered directly to construction sites. We manufacture portable toilet and shower facilities in a range of configurations, all produced in line with international quality standards. These units are suitable for diverse settings including public areas, construction sites, mines, oil fields, international trade fairs, parks, gardens, sports facilities, tourism sites, and road construction projects.

BARRACKS HOUSING FEATURE

External Sloped Roof

The insulated sloped roof forms a thermal barrier, reflecting heat and maintaining a cool interior during hot summer conditions.

Weatherproofing

The sloped design ensures effective rainwater drainage, preventing pooling and leaks during heavy rainfall.

Anti-Bacterial Surfaces

Walls use HPL or PVC-coated sandwich panels, resistant to mold, mildew, and chemical cleaning agents.

Integrated Drainage

Floors are gently sloped to central stainless steel drains, enabling quick and easy hose-down cleaning.

International Grade Plumbing

PEX or copper pipes and fittings comply with CE and UPC standards, built for high pressure and heavy use.

Vapor-Proof Lighting

IP65-rated LED lighting and high-capacity exhaust fans maintain brightness and low humidity levels.

TECHNICAL SPECIFICATION OF BATHROOM AND SHOWER CONTAINER BUILDING

Size

A single standalone modular container offers two standard sizes: 18 Sq.m (3x6m) and 15 Sq.m (2.5x6m), with flexible expansion possible laterally and vertically to meet custom client demands.

Structure

The main frame is constructed from high-zinc-content galvanized steel profiles or weathering steel with a painted coating, Secondary components are galvanized square tubing or profiles. offering excellent structural stability, corrosion resistance, wind resistance, and earthquake resistance.

Wall

Our modular office containers wall use up to 150mm high-performance insulation sandwich panels for excellent thermal insulation, soundproofing and safety. Core options include non-combustible, non-toxic mineral wool and glass wool; cost-effective EPS; and high thermal conductivity polyurethane foam. All meet strict fire standards, ensuring stable temperatures in extreme weather, reducing fire risks and protecting personnel and equipment.

Roof and Ceiling

The structure is equipped with a slightly sloped roof design, which effectively facilitates smooth rainwater drainage and prevents water accumulation. The insulation layer adopts 100mm glass wool quilt, featuring excellent fire resistance performance to enhance safety. The sky ceiling is constructed with color-painted tiles, presenting an aesthetic and durable surface.

Chassis Floor

The floor system features a multi-layer structure for enhanced durability, insulation and comfort. It is constructed with a sturdy fiber cement slab as the base, topped with a high-quality PVC vinyl finish for a smooth, wear-resistant surface. A 100mm-thick insulation layer is integrated, delivering effective thermal performance and contributing to a more comfortable and energy-efficient interior environment.

Window and Door

The modular office container comes standard with PVC sliding windows fitted with anti-theft grids and mosquito nets. Optional upgrades include PVC/aluminum shutters, security bars, steel railings, extra-large windows, and blinds. It features a swing door with an insulated core and double-skin 0.6mm Colorbond metal; roller shutters and sliding glazed doors are available as alternatives.

Electricity

Each container unit is fully equipped with standard-compliant cables, trunking, and lighting fixtures. It is pre-installed with power sockets and circuit control systems that meet local electrical codes and safety regulations. The integrated electrical setup ensures reliable power distribution, safe operation, and convenient usage for office equipment and daily electrical needs, complying with regional standards and providing a stable, secure power supply for the modular space.

Plumbing system

It is prefabricated with a complete water supply and discharge system, including a water tap and insulated discharge pipelines installed beneath the base chassis to prevent freezing and ensure durability. The pre-plumbed design allows for easy and quick connection to various sanitary fixtures such as toilets, urinals, showers, and sinks, providing a fully functional and convenient water system for daily use.

Foundation

Containers need to be installed on level concrete blocks, beams, or bases. Therefore, the foundation must meet the requirements of ground flatness, soil with sufficient bearing capacity, and no ground settlement allowed. If the groundwater level is high, waterproofing measures must be considered, such as increasing the concrete's impermeability or installing a drainage system.

MODULAR BATHROOM & SHOWER UNIT ADVANTAGE

Modular sanitation units offer significant upgrades over traditional construction, especially when deployed in challenging environments like mining zones, construction sites, and medical facilities.

Time Efficiency

By prefabricating units in a precision-controlled factory, we reduce field installation time by up to 80%, helping you launch projects faster and lower labor costs.

Plug-and-Play

Fully integrated plumbing and electrical systems come pre-installed. No complex on-site construction—just connect utilities and go into service instantly.

Corrosion Resistance

Engineered with galvanized steel and marine-grade protection to perform reliably in humid, salty, and harsh tropical environments.

Certified Quality

Fully certified to ISO, CE, and ASTM standards, guaranteeing global acceptance and compliance for projects in any region.

Self-Cleaning Design

Smooth, non-porous surfaces resist mold and bacteria, making daily cleaning fast and reducing long-term maintenance costs.

Durability

High-impact modular panels outlast drywall and tile, standing up to heavy use and ground movement for extended service life.

STANDARD AND CUSTOM SANITARY AND WC CONTAINER

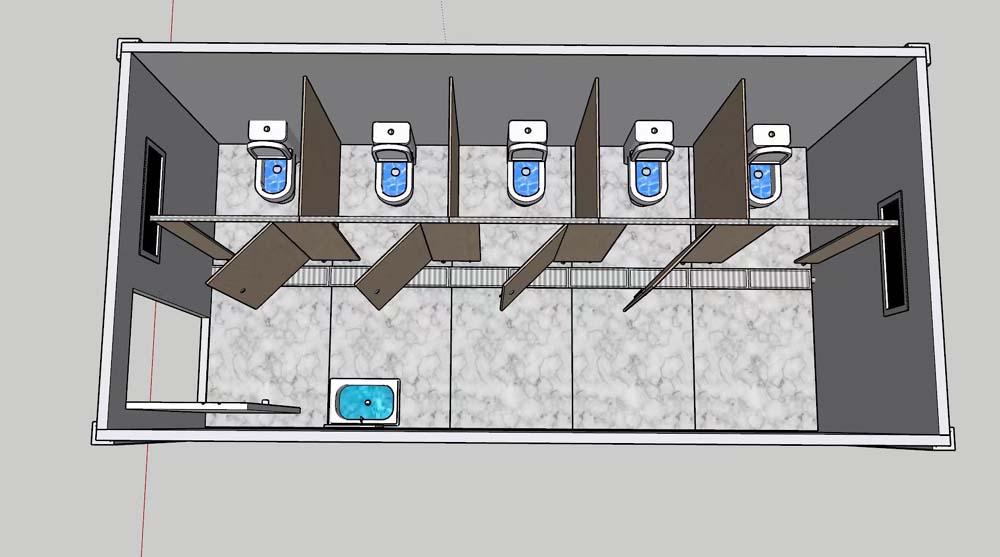

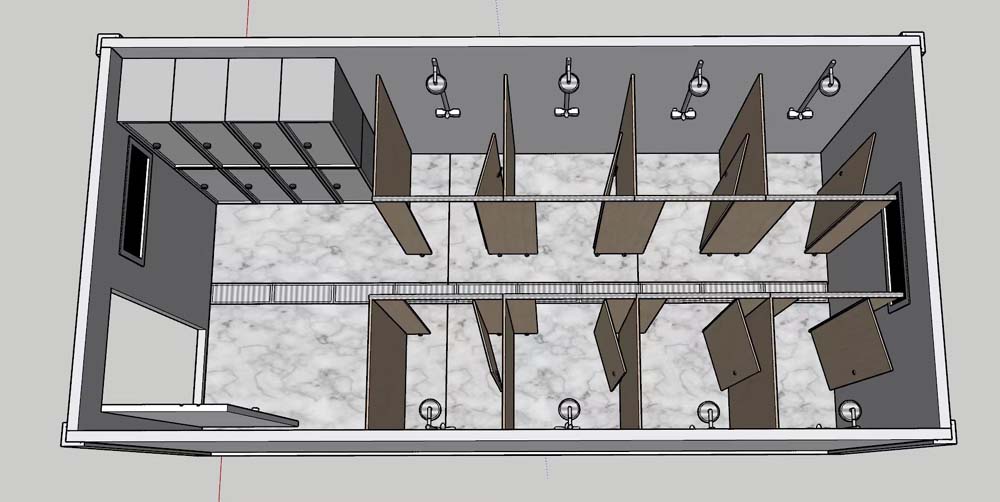

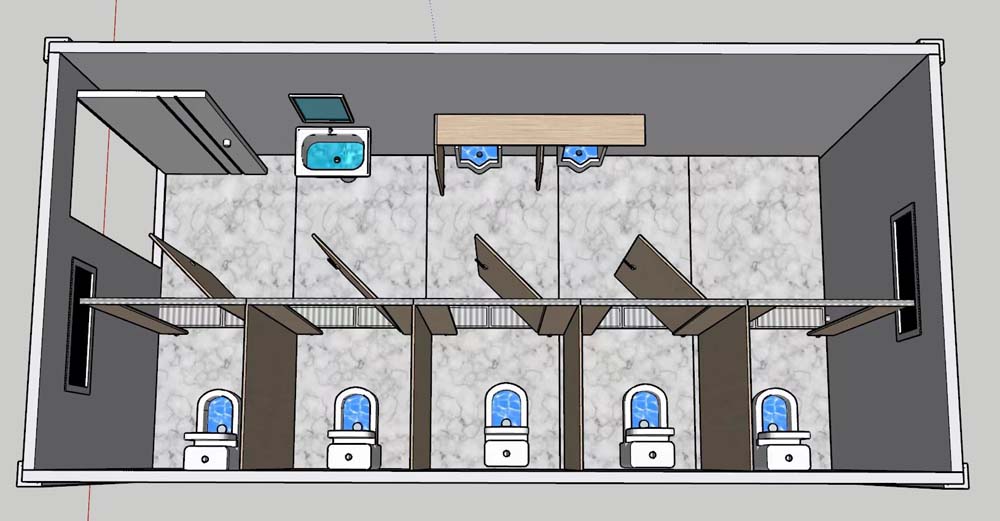

Units can be configured in different layouts depending on the number of users and the project requirements.  Typical configurations include:

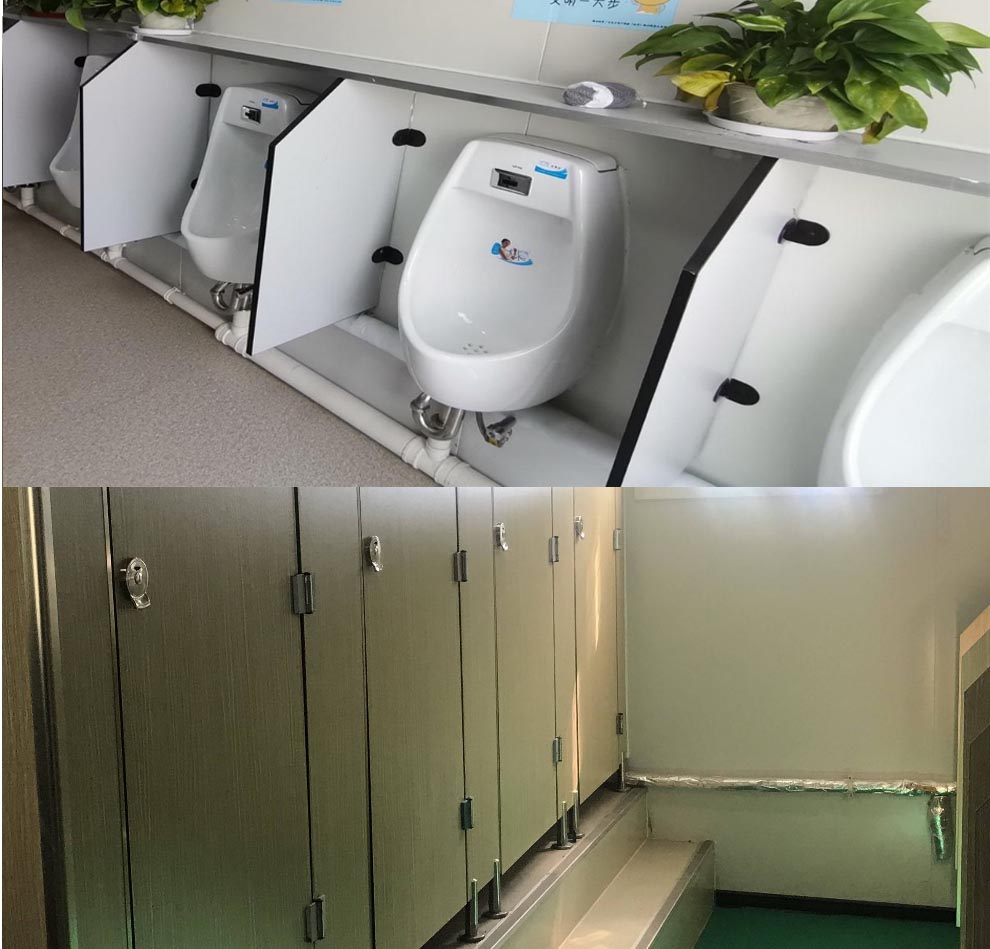

INDOOR HYGIENIC WARES AND EQUIPMENT

Inside the units, hygiene and ease of maintenance are essential. Interior surfaces are designed for durability and easy cleaning, with options such as PVC flooring or ceramic finishes. The containers can include:

Single WC container units

Multi-toilet blocks

WC and shower combination containers

Urinal and washbasin containers

Accessible WC containers for disabled users

Units with changing areas

Standard toilets

Accessible toilets for disabled users

Urinals

Washbasins

Shower cabins

Soap dispensers

Toilet paper holders

AFFECT MODULAR SANITARY CONTAINER HOUSE PRICE FACTORS

Internal configuration (toilets, urinals, sinks, showers, water tanks, drainage system)

Size and layout of the container

Insulation materials and thickness

Electrical and plumbing fittings

Waterproofing and anti-corrosion treatment

Transportation distance and delivery location

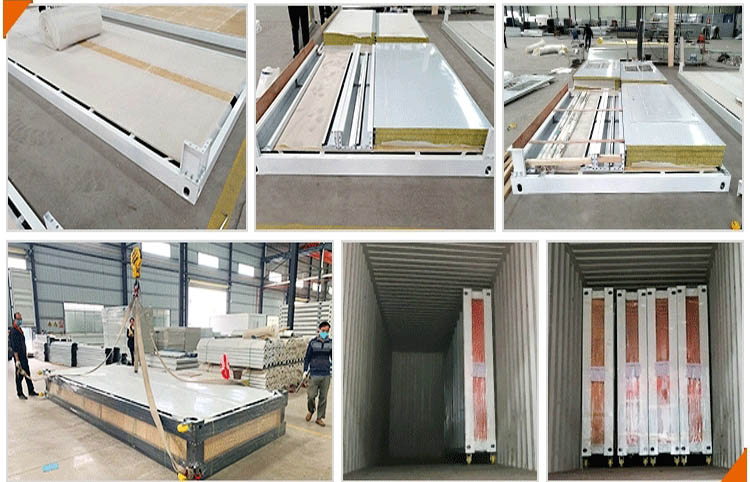

Delivery type is pre-assemble or flat-pack

Customization requirements and additional accessories

MODULAR BATHROOM & SHOWER CONTAINER APPLICATION

This product boasts exceptional environmental adaptability and versatility, primarily covering the following four core areas:

Industrial and Energy Camps

Providing durable living facilities for workers in mining areas, oil and gas fields, construction sites, and remote industrial zones.

Emergency and Military Support

Rapidly deployable to military bases, disaster prevention and mitigation sites, rescue shelters, and emergency medical isolation zones.

Public and Commercial Accommodation

Widely used in school dormitories, temporary housing, wilderness camps, hotels, and tourist resorts.

Extreme Environment Adaptation

Specifically designed for harsh climates such as high salt spray (coastal areas), high temperature (deserts), and high humidity (tropical regions), meeting the long-term or temporary sanitation needs of global infrastructure construction.

Extreme Environment Adaptation

Specifically designed for harsh climates such as high salt spray (coastal areas), high temperature (deserts), and high humidity (tropical regions), meeting the long-term or temporary sanitation needs of global infrastructure construction.

WHY SELECT MODULAR CAMPS SANITARY AND WC CONTAINER HOUSE?

We fabricate the modular bathroom can meet customer’s demand as below

Hygienic, easy to clean and maintain

Sturdy, waterproof, windproof and durable

Flexible layout and customizable design

Pre-plumbed, pre-wired, ready to use

Fast installation and easy relocation

Safe, non-slip and well-ventilated

Cost-effective with low upkeep

Contact Us

FAQ

The standard package includes the main container unit, basin, toilet, shower head, complete plumbing and electrical wiring. All lights and sockets are water-resistant for safe use in wet environments.
Absolutely. The entire shower module can be installed on a wheeled base, with all necessary pre-installed systems to support self-contained, independent use.
Yes, flexible customization is available: size (based on 20ft containers), interior layout (single/multi-compartment, with changing rooms), and configuration (sanitary ware, materials, colors, additional facilities like water heaters).
Fully factory-prefabricated, a single standard unit can be installed and ready for use within 1 day. Installation time extends appropriately for multiple units or customized large projects.
Professional performance: 100-150mm water-resistant glass wool insulation (walls/roof/floor) + high-quality waterproof layers. Interior wet areas use stainless steel/aluminum lining for waterproofing and easy cleaning.
Absolutely. Designed with standard container dimensions for easy transportation. They can be disassembled, moved to new sites and reinstalled for reuse, cost-effective and eco-friendly.
Connection to on-site water supply (cold/hot), drainage and power supply. Solar power systems can be configured for remote areas without external power.
