Canteen container

Canteen container

Prefabricated (prefab) dining halls represent a modern, high-efficiency solution for rapid infrastructure needs. Designed to meet international production standards, these structures are engineered for durability and hygiene, making them ideal for businesses, institutions, and organizations. Please come to us when you are looking for durable catering facilities for construction sites, schools, business parks, mines, or other remote temporatory workspace projects, Our modular container structures offer exceptional convenience, cost-effectiveness, and adaptability. These dining hall structures, which are also established in difficult regions and can be moved when necessary, are preferred at points with different functions.

WHAT IS A DINNING HALL & CANTEEN CONTAINER?

Modular container dining halls, also known as mess halls, feature a flexible structure divided into functional zones including kitchens, dining areas, storage, utility rooms, and washing spaces. Built to strict hygiene and climatic standards, they provide a safe, clean, and comfortable environment for group catering. Fully prefabricated in factories under international standards, these units are easily transported and quickly assembled on-site. Widely used in construction sites, military camps, schools, hospitals, and emergency relief scenarios, they efficiently support large-scale meal services. Highly customizable and expandable, they are ideal for disaster relief, evacuation sites, and temporary settlements. Fully finished models can be put into immediate operation upon installation, ensuring fast and reliable catering solutions for any project.

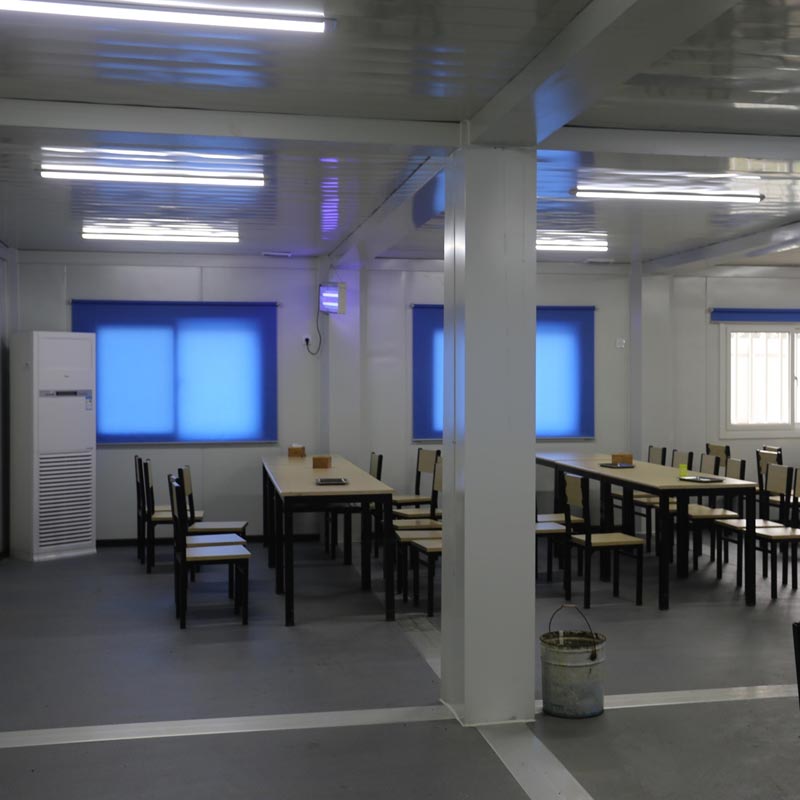

MODULAR KITCHENS AND DINNING HALL FEATURES

Structure

Galvanized steel frame with powder coating and sandwich insulation panels as house enclosure, including necessary door and window structure.

Interior Materials

Non-slip floor slab, washing room, easy-to-clean wall surfaces and fire-resistance kitchen wall panels.

Utilities

Pre-installed electrical wire, light socket, water, and ventilation systems.

Floor load capacity

500kgs/m2 for public dinning space.

Size

Customized, the modular dining room can be installed on any free site, no any limit on dimension, interlocked, multi-storey complexes.

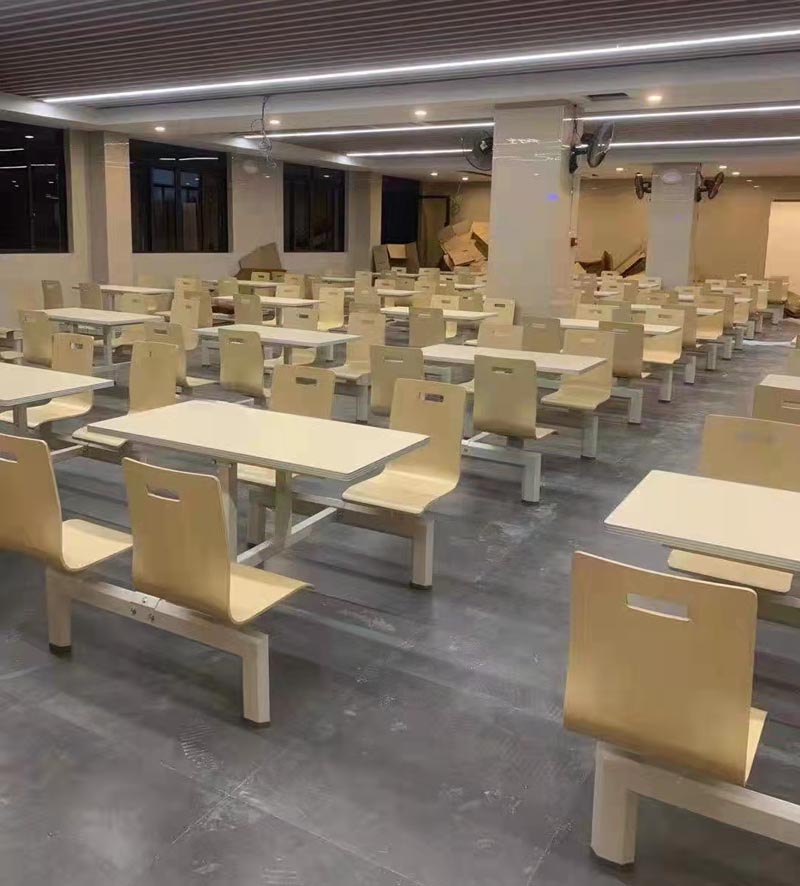

PREFABRICATED MODULAR DINNING HALL & CANTEEN CABIN ADVANTAGES

SAFTY & HYGIENIC

Fire-resistance 2hr sandwich panel is applied in kitchen, and the surface is easy to make clean.

Climate resistance

Modular dining halls are equipped with a specialized thermal and water insulation system, making them suitable for deployment in areas characterized by high humidity, extreme heat, and low winter temperatures.

Fast Installation

It is possibility to commission one 150 Sq.m modular dinning hall within one week

Expansive Dining Area

Generous interior space ensures a comfortable dining experience for all guests

Bespoke modular design

with integrated cooking, seating, storage, and rest areas

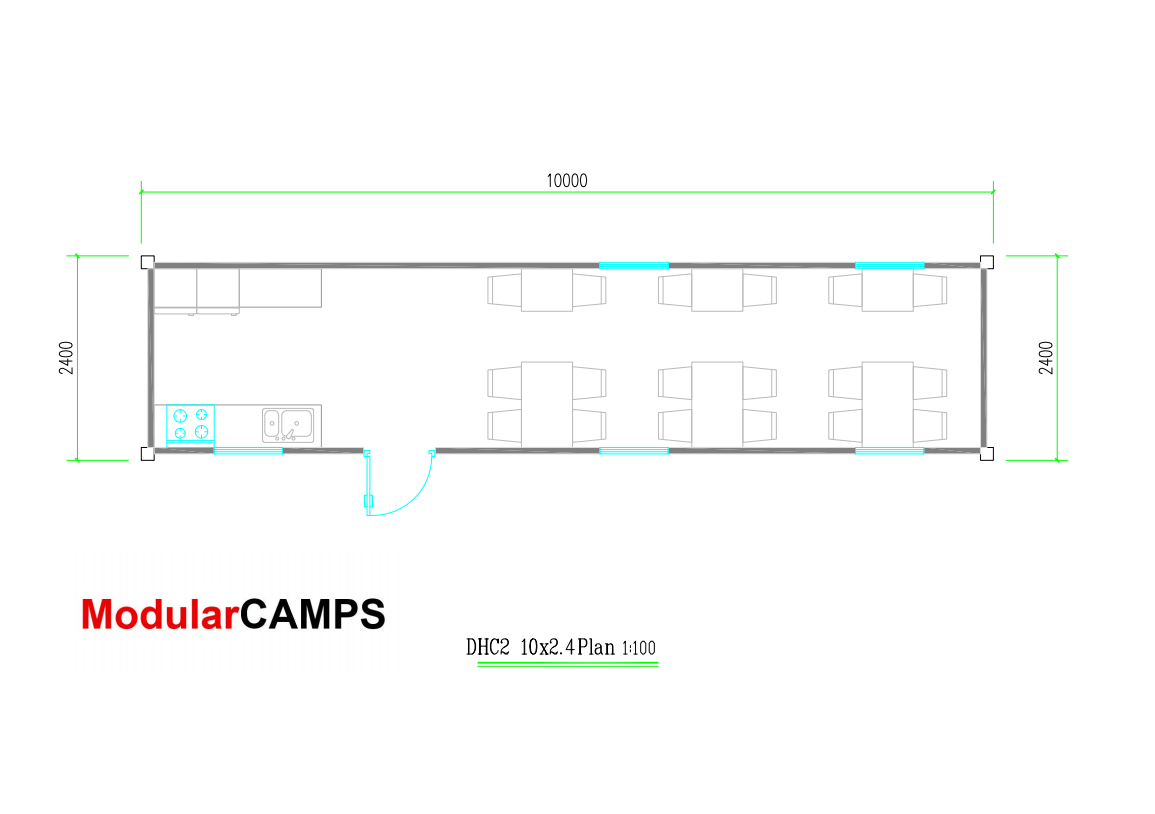

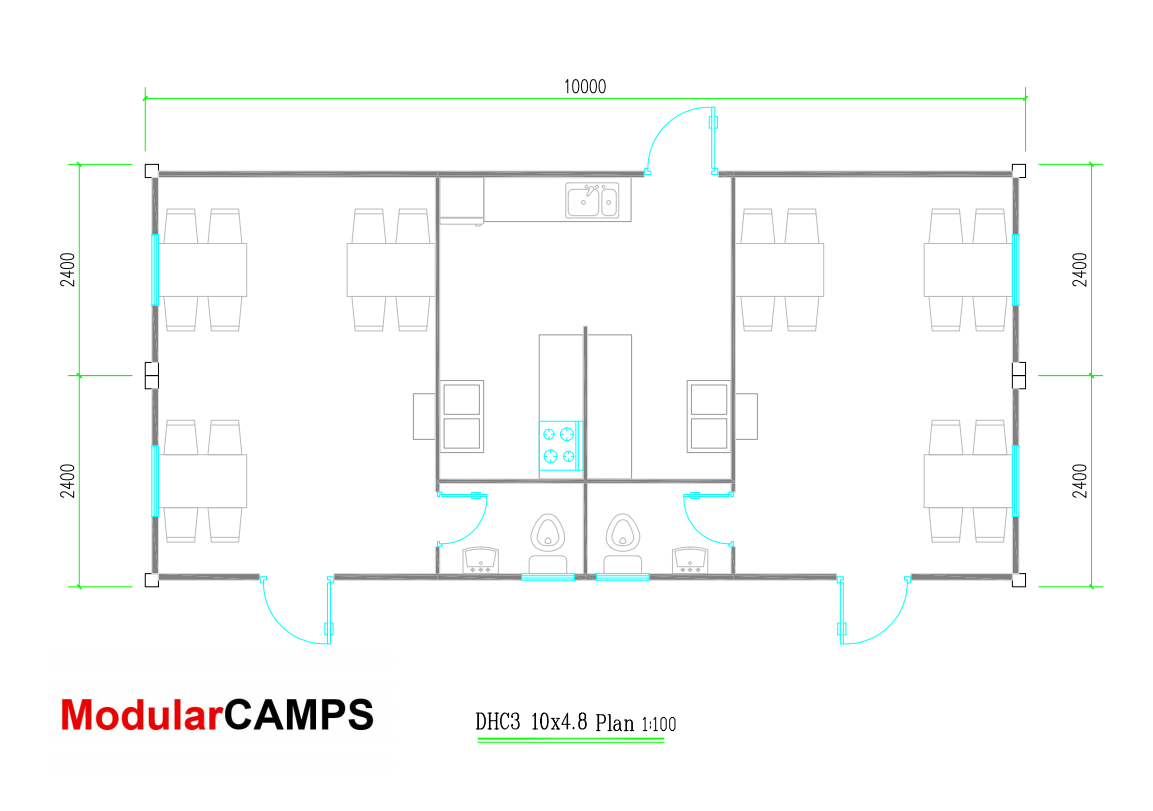

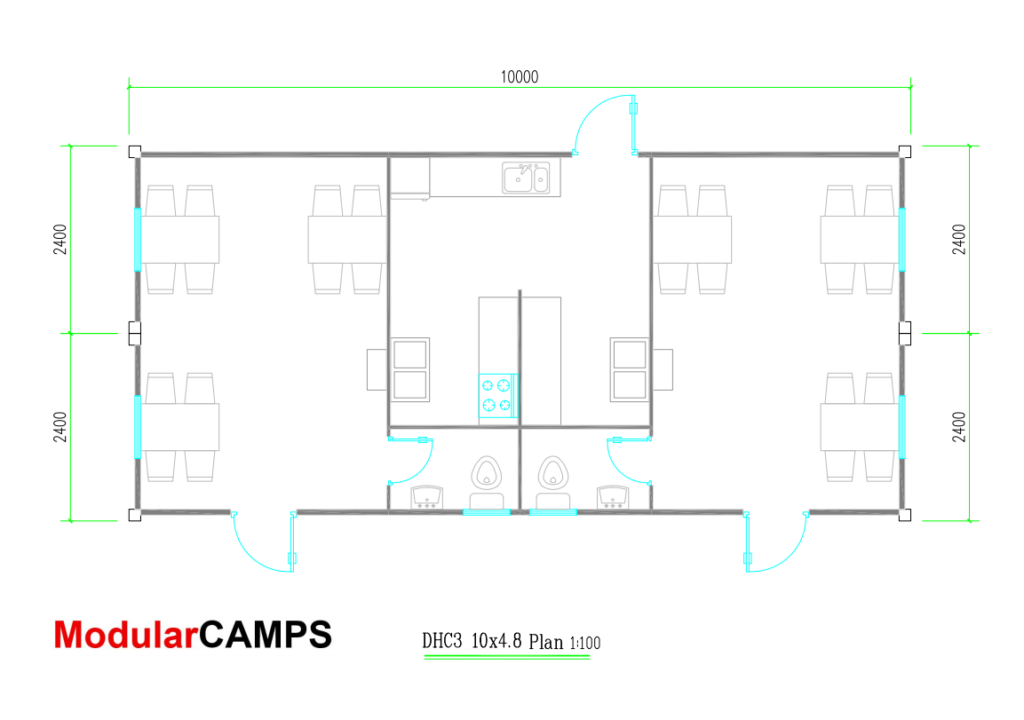

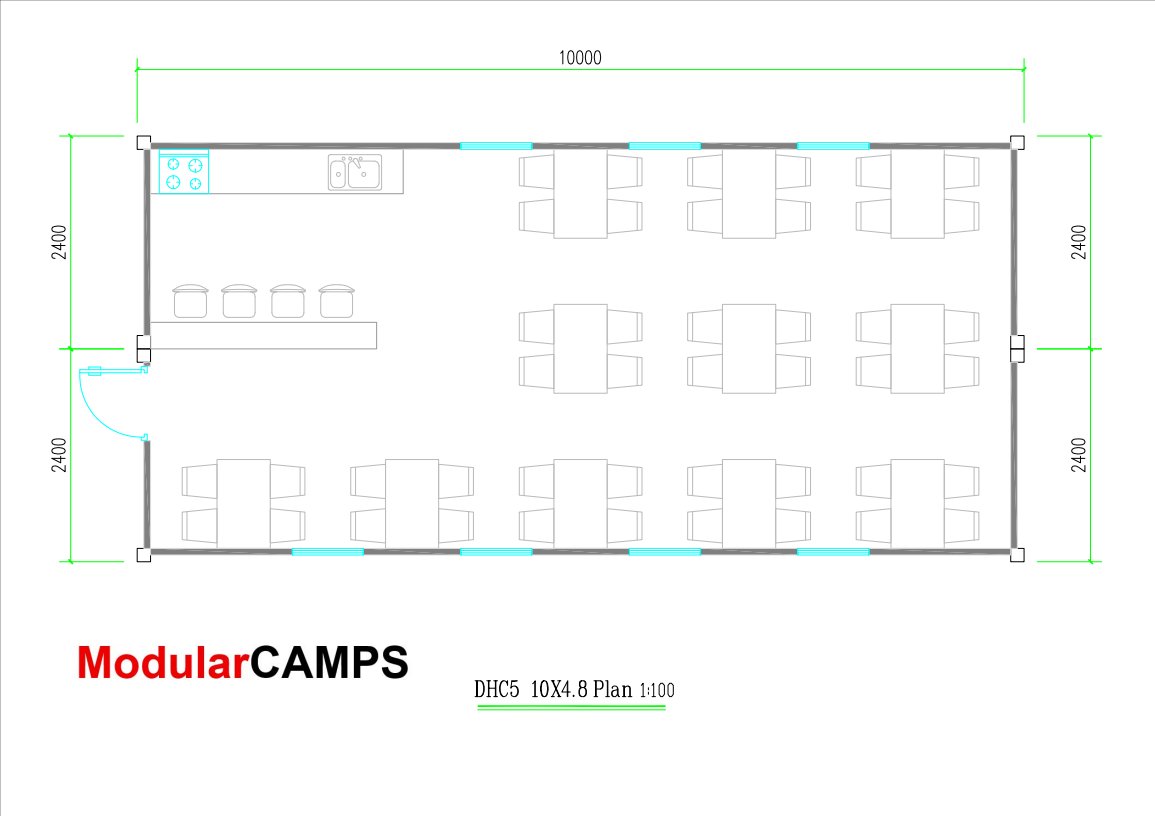

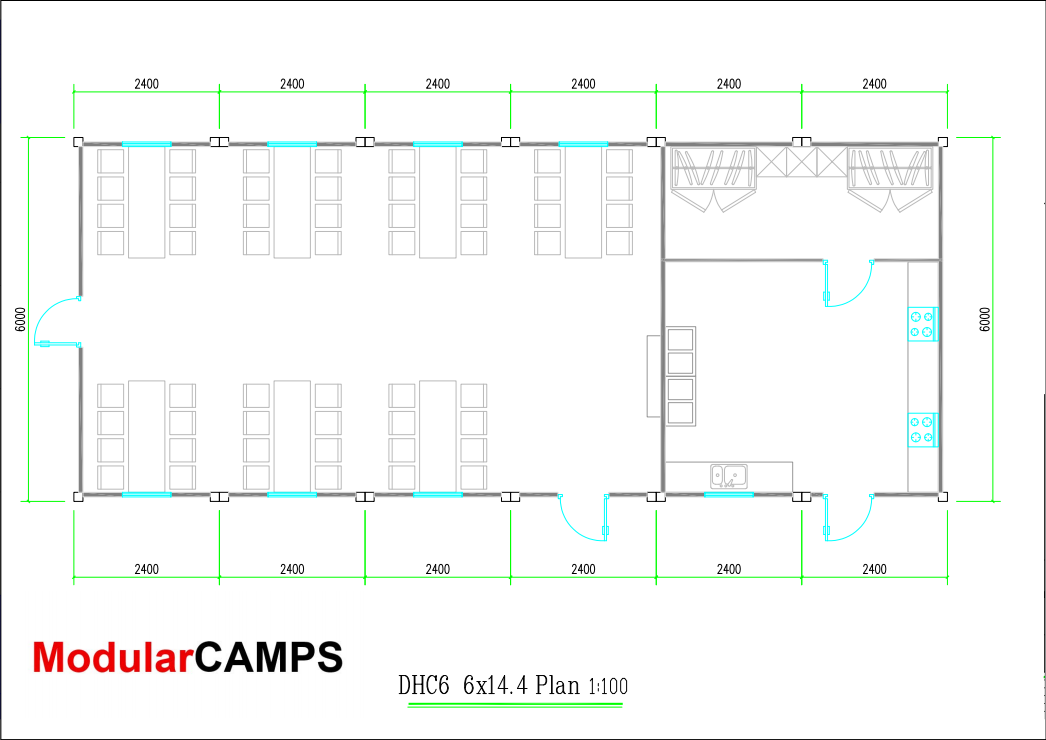

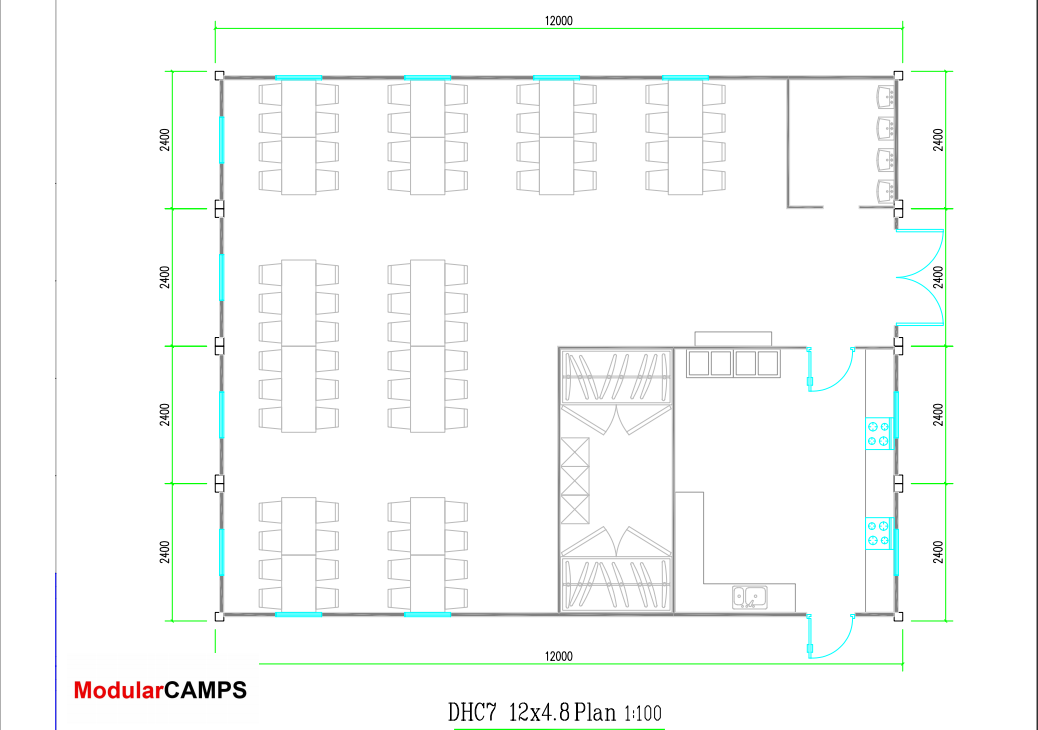

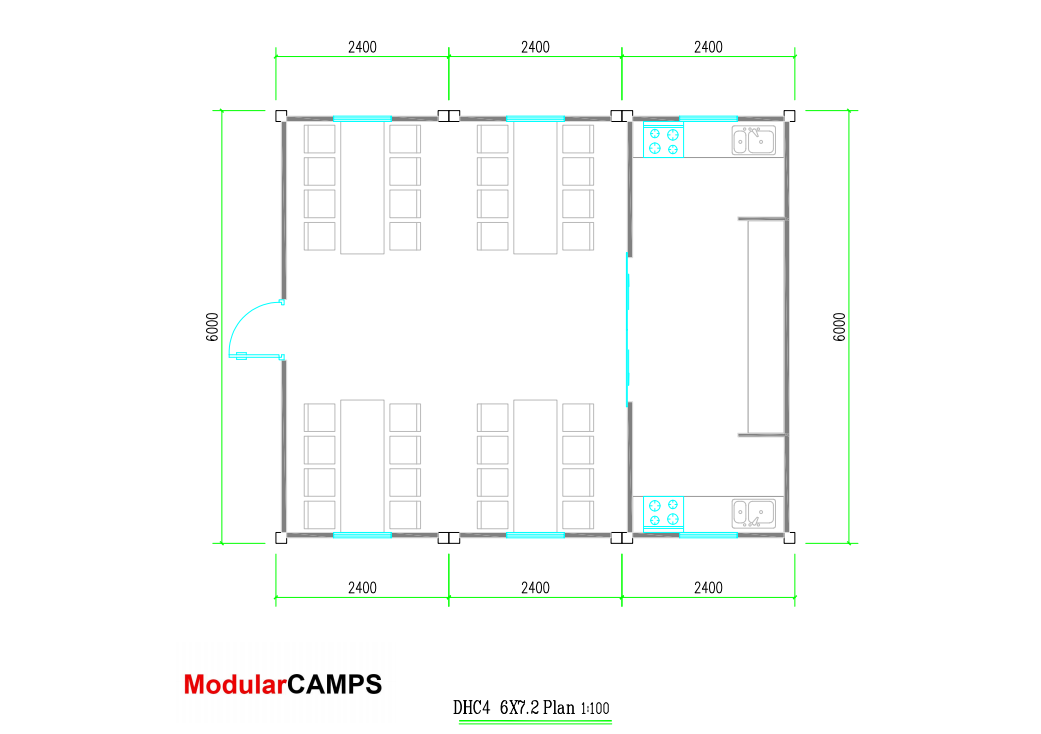

DINNING HALL CONTAINER HOUSE FLOOR PLANS

DINNING HALL & RESTAURANT CUSTOMS CONTAINER HOUSES APPLICATION

Construction sites

Mining camps

Oil and gas fields

Military bases

Schools & hospitals

Remote work zones

HOW MUCH TO BUILD A PREFABR CONTANTEEN CONTAINER HOUSE?

The cost of constructing prefabricated container houses varies depending on size, materials, configuration, interior finishing, and engineering requirements. Larger models, custom layouts, higher-grade steel, insulation, air conditioning, complete plumbing and electrical systems, and special solutions designed for mining, military, or government camps will all increase the total investment. Other costs may include transportation, on-site installation, foundation, and certification. To provide an accurate quote, we need detailed information such as size, layout, materials, facilities, quantity, and destination.

Contact Us

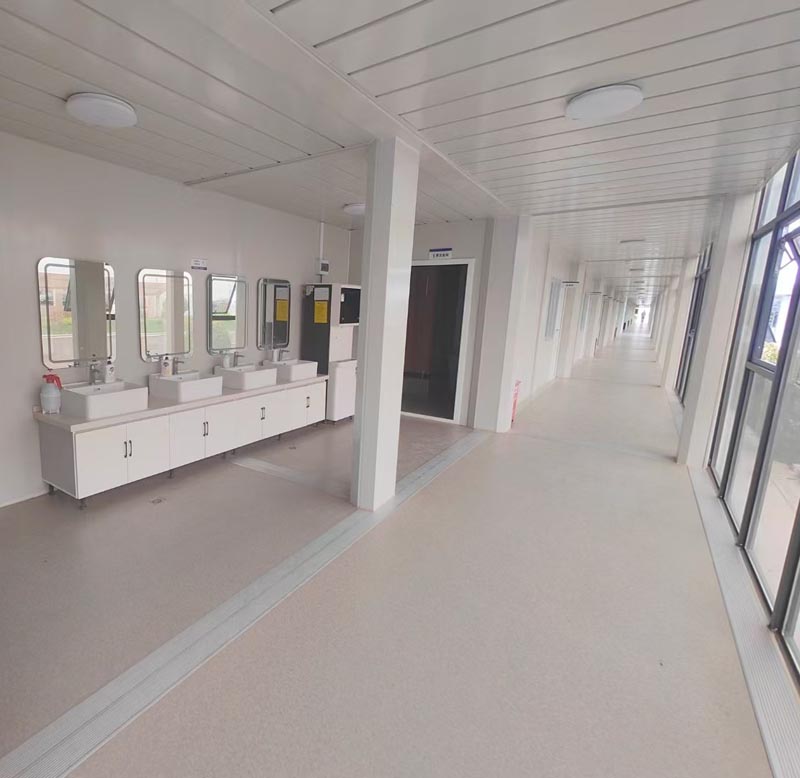

HOW TO BUILD A CONTAINER HOUSE?

Prefab modular container houses fall into four main types: demountable, flatpack, folding and expandable ones, each designed with distinct structural features for diverse application needs.

Site Preparation

Select a flat and solid ground surface. A concrete foundation or brick plinth is usually required to ensure the stability of the modular house and prevent settlement or water leakage.

Base Frame/Skeleton Installation

Assemble the bottom frame structure in accordance with the drawings. Connect the bottom beams, corner fittings and other components with bolts, and calibrate with a spirit level to ensure the diagonal error is within the allowable range (e.g. ≤3mm).

Wall and Roof Installation

Assemble the prefabricated color steel panels or wall modules to the frame piece by piece from bottom to top. Ensure the buckles or connectors of each panel are firmly engaged, and secure them finally with self-tapping screws or rivets. Proceed to install the roof structure thereafter.

Door, Window and Finishing Work

Install door and window assemblies, and apply waterproof silicone sealant to all joint gaps between panels and between panels and the frame—this is a critical step to prevent water leakage.

Inspection and Site Cleaning

Finally, check that all connectors are fastened and the structure is stable, then clean up the construction site.

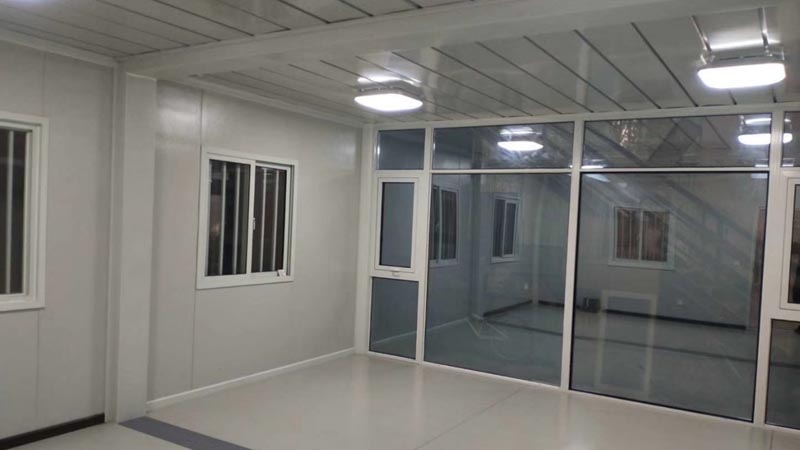

MODULAR DINNING HALL CONTAINER CASE VIEW

Dinning canteen hall construction in Chile

Completed in 2022, the restaurant dinning hall, located in the Atacama Desert in northern Chile, the facility is divided into distinct functional zones, including a dedicated kitchen area, separate dining spaces for managers and staff, restrooms, and a storage area. It is designed to accommodate up to 250 personnel per shift, with two separate dining halls: one catering to 50 people and the other capable of serving 200 people. There are two restrooms in total, one with 18 sinks, 8 urinals, and 10 toilets, and the other with 6 sinks and 6 toilets. To optimize thermal performance during the hot season, the building features an external sloped roof designed with advanced insulation.

BEST DINNING HALL MODULAR HOUSE CONTAINER SUPPLIER

As a global leader in modular building manufacturing and supply, we provide top-tier modular construction solutions to clients across every continent. We are committed to uncompromising quality, dependable performance and fast, responsive service. What truly distinguishes us is our exceptional design flexibility—we craft bespoke solutions perfectly aligned with your project’s unique spatial and geographic requirements, a strength that applies equally to our container dinning hall and all other modular building offerings. Additionally, we deploy our own highly skilled, in-house assembly teams to handle on-site installation with outstanding speed and efficiency, ensuring seamless project delivery.
Contact Us

FAQ

Yes, can. All necessaries at requested can be provided complying with engineering requirements.
The dinning room, kitchen, restroom are equipped with plumbing pipelines, lighting, sockets and control panel.
Yes. Powerful, large-capacity ventilation motors provide strong airflow to efficiently extract smoke, odors, and heat from the space.
Yes, highly portable. Their modular, robust structure allows sections to be safely lifted, repositioned, or relocated multiple times using a crane or forklift. Designed for repeated use, they can be easily transported between sites, making them a flexible, cost-effective solution for temporary or changing workspace needs.
Portable modular dinning hall buildings are engineered for high safety and reliability. They meet first-degree earthquake resistance standards, support a snow load of 80kg/m², and are rated for the 3rd Climate Zone, adapting to diverse environmental conditions. With wind resistance up to 80km/h and a chassis load capacity of 500kg/m², the structure remains stable and secure.
Yes, modular prefab dinning buildings are highly suitable for long-term use. Under normal operating conditions, a modular container office has a service life of at least 10 years. With proper regular maintenance—including structural checks, upkeep of insulation, and protection against corrosion—its lifespan can be extended to up to 20 years. Built with durable steel frames and weather-resistant materials,
